PR1-1C11BHI111 美国GO减压阀

PR1-1C11BHI111 美国GO减压阀

美国GO减压阀 GO中国代理 PR1-1C11BHI111 316L不锈钢接液材质 稳压范围：0-250PSI;

美国GO减压阀PR1的主要参数
气体或液体
316 L 不锈钢,Monel和Hastelloy C合金材料可以选择
电解抛光本体达到25 Ra的光洁度
20微米的入口过滤器
入口压力:6000PSI 西安秦控测控仪表有限公司***代理GO
使用温度: -40° to 500° F (-40° to +260° C)
出口压力范围是 10,25,50,100,250,500 和 750PSI
仅重1.9 磅 (0.86 公斤)
原产国：美国
Cv值:0.025,0.06,0.2和0.5(0.06是标准)
极限压力是 2 倍的***大的工作压力
爆破压力是 4 倍的***大的工作压力

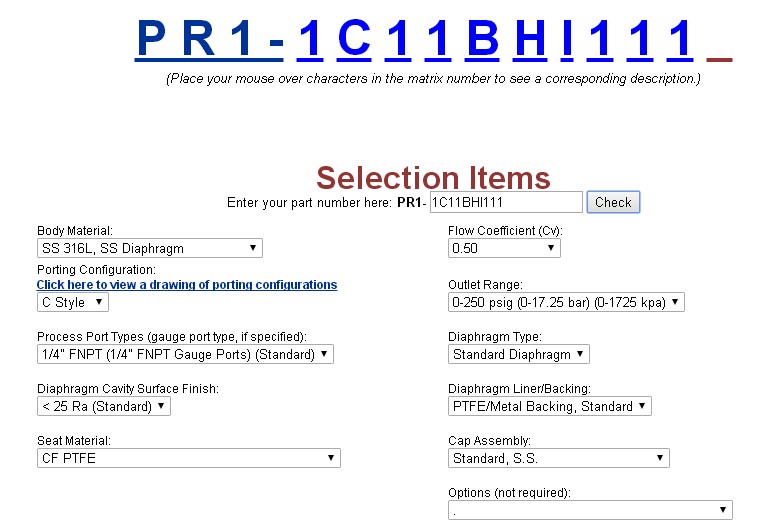

PR1-1C11BHI111 型号详解

PR美国GO减压阀常用型号
PR1-1A11A3J1110 0-500PSIG、PR1-4B11B3D184、PR1-1B11I3D111、PR1-1C11H3E111、PR1-1B11I3D111
PR1-1A41A3W114、PR1-1A41A5I314、PR1-1A41A5J314、PR1-1A41A5G314、PR1-1C11H3G111 、PR1-1C11H3E111
PR1-1C11H3G111 、PR1-1L11Q3E111、PR11C11H3E111 、PR1-1A11A3D114、PRI-ILIIQ3E111 、LG1-2A01A3D111
LG1-2A01A3C111、LG1-1A01A3D111、LG1-1A01A3C111、CPR1-1A01H3A111、1A01A3A111PR1-7Q11B5E1A1
BP3-1A11I5G114、PR50-1A11Q5L314、PR50-1A11Q5K314、PR57-1A41Q5N344、PR7-1A51I8I111 、BP3-1A11I5G111
H2-1Y33Q5G411、H2-1Y33Q3G411、BP3-1D11D5C111、PR1-1B11A3D114、PR1-1C11A3D111、PR7-1A51I8I-111
PR5-1A11D5D111、PRI-1C11B5G111、PRI-1C11B3G111、PR1-1L11A3E111、PR1-1C11A3E11、H2-1Z55C3E111
PR1-1C11H3G111、PR1-1C11H3E111、PR1-1C11Q3G111 PR1-6A01B5C384，PR1-1A11B3C111、PR1-1A41A3C111
